GMC Terrain: Seat Belts / Rear Seat Belt Comfort Guides

Warning

A seat belt that is not properly worn may not provide the protection needed in a crash. The person wearing the belt could be seriously injured. The shoulder belt should go over the shoulder and across the chest. These parts of the body are best able to take belt restraining forces.

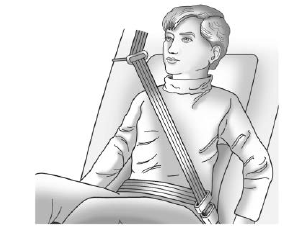

Rear seat belt comfort guides may provide added seat belt comfort for older children who have outgrown booster seats and for some adults. When installed on a shoulder belt, the comfort guide positions the shoulder belt away from the neck and head.

This vehicle will have rear seat belt comfort guides in the rear outboard seating positions.

To install:

GMC Terrain. Rear Seat Belt Comfort Guides

  1. Remove the guide from its storage pocket on the side of the seatback.

    GMC Terrain. Rear Seat Belt Comfort Guides

  2. Place the guide over the belt, and insert the two edges of the belt into the slots of the guide.

    GMC Terrain. Rear Seat Belt Comfort Guides

  3. Be sure that the belt is not twisted and it lies flat. The elastic cord must be behind the belt with the plastic guide on the front.

    GMC Terrain. Rear Seat Belt Comfort Guides

  4. Buckle, position, and release the seat belt as described previously in this section. Make sure the shoulder belt crosses the shoulder. The belt should be close to, but not contacting, the neck.

To remove and store the comfort guide, squeeze the belt edges together so that the seat belt can be removed from the guide. Slide the guide back into its storage pocket on the side of the seatback.

    Lap-Shoulder Belt

    All seating positions in the vehicle have a lap-shoulder belt. The following instructions explain how to wear a lap-shoulder belt properly. Adjust the seat, if the seat is adjustable, so you can sit up straight...

    Seat Belt Use During Pregnancy

    Seat belts work for everyone, including pregnant women. Like all occupants, they are more likely to be seriously injured if they do not wear seat belts...
