GMC Terrain: Bulb Replacement / Front Turn Signal Lamps
To replace one of these bulbs:
- Open the hood. See Hood.
![GMC Terrain. Front Turn Signal Lamps](images/front_turn_signal_lamps-1676/1283/gmc_terrain_front_turn_signal_lamps_793.gif)
- Remove the bulb access cap
from the top of the headlamp
assembly by turning it
counterclockwise.
![GMC Terrain. Front Turn Signal Lamps](images/front_turn_signal_lamps-1676/1283/gmc_terrain_front_turn_signal_lamps_794.gif)

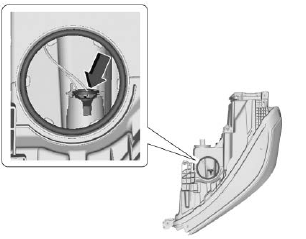

- Remove the bulb from the bulb
socket by pinching the tabs on
either side of the bulb and pull
straight out.
- Install the new bulb in the bulb
socket.
- Install the bulb access cap onto
the headlamp assembly by
turning clockwise.
To replace one of these lamps:
Open the liftgate. See Liftgate.
Remove the two screw caps
and two screws from the
taillamp assembly.
Pull the taillamp assembly out
of the vehicle body...
